Full-Process Sheet Metal Manufacturing
Laser cutting through final assembly in Suzhou, China — one accountable supplier, one project engineer, full-chain QC.

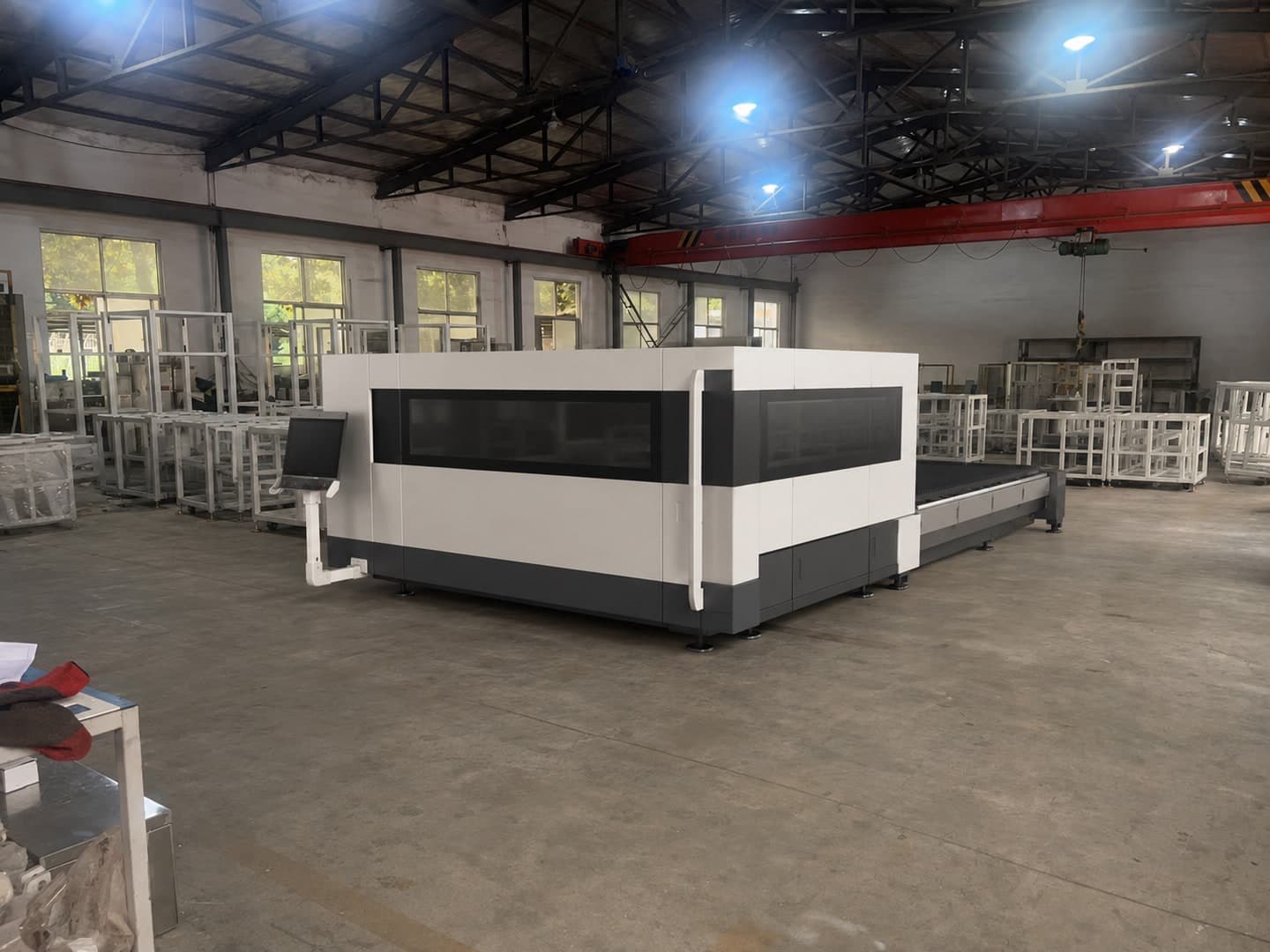

Laser Cutting
Two 6-meter fiber laser machines plus a dedicated tube laser cover mild steel, stainless, aluminium, and galvanized sheet — plate and structural tube alike. Nest-optimized for material yield. Burr-free edge standard.

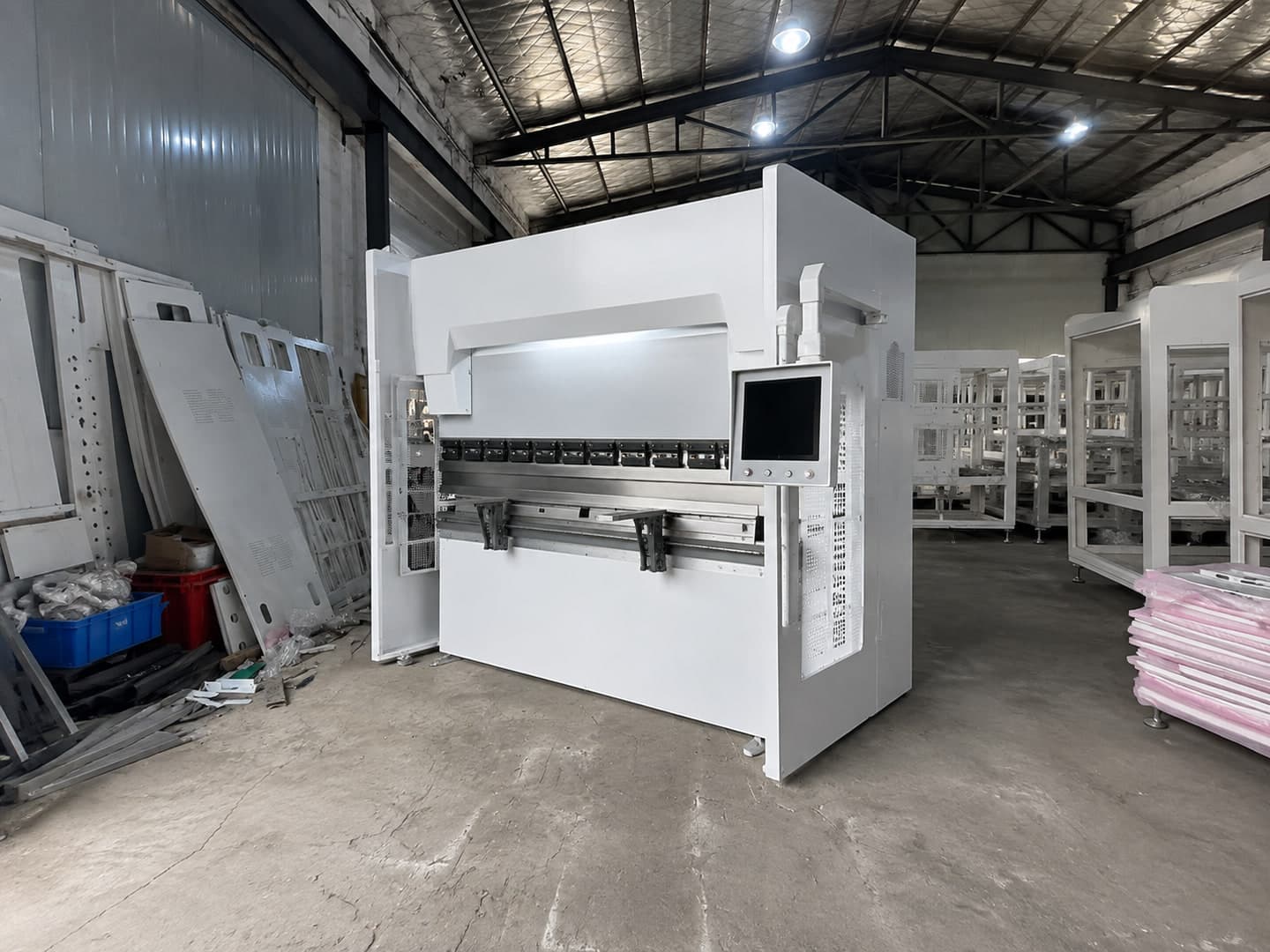

Bending & Forming
Three CNC press brakes with programmable back-gauge deliver repeatable bends across batch runs. Complex multi-bend parts tooled from 3D models.

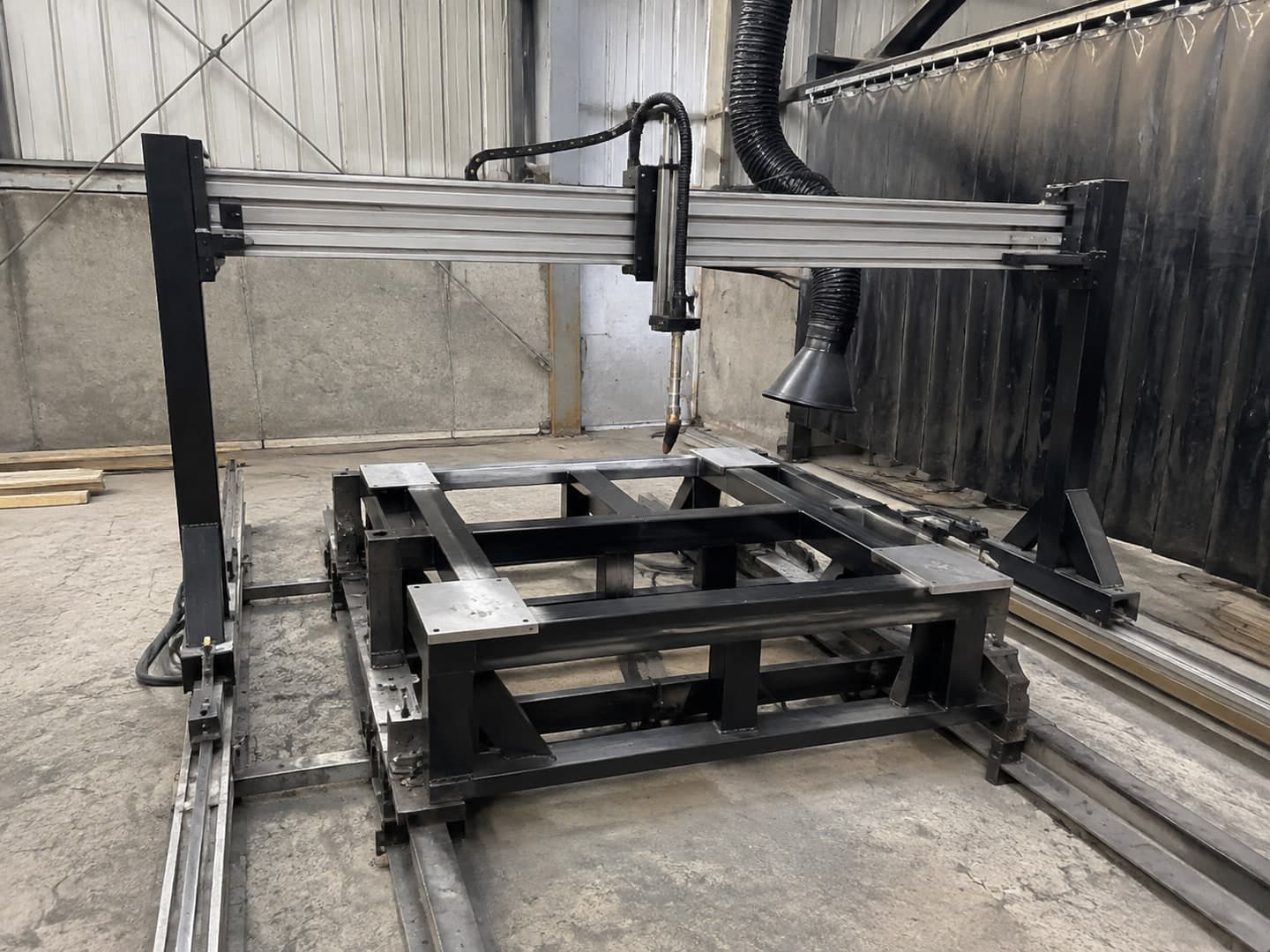

Welding
25-station welding workshop. TIG for stainless and aluminium precision work. MIG for structural steel. Spot welding for sheet assemblies.
Powder Coating & Painting
In-house wet-spray line with high-temperature baking. Powder coating runs through long-term audited partner lines — color match, film thickness and adhesion are verified by our QC before shipment.
Assembly & QC
Final assembly including threaded inserts, door hardware, gaskets, cable glands, and labels. Full QC with dimensional report and pre-shipment photos.
Surface Finishing
Extended finishing options beyond powder coat: brushed or mirror stainless, anodized aluminium, chemical passivation, and electropolish for food/pharma applications.
Key Equipment
| Equipment | Model / Key Spec | Qty |
|---|---|---|
| Fiber laser cutting machine | Han's Laser G6020F-A · 12 kW · 2,000 × 6,000 mm | 1 |
| Fiber laser cutting machine | 6 m bed | 1 |
| Laser tube cutting machine | LG6022A · round & square tube | 1 |
| CNC press brake | 150 T · 3,100 mm | 3 |
| Hydraulic swing shear | QC1211 · 8 mm × 4,000 mm | 1 |
| CNC V-grooving machine | 1,500 × 4,000 mm | 1 |
| CNC gantry machining center | 6 m / 4 m travel | 2 |
| CNC milling machine | TOM-4HG | 1 |
| Welding stations | MIG · TIG · spot | 25 |
| Hardware insertion, tapping & leveling machines | Secondary operations | 3 |
| Surface graining machine | Brushed finish | 1 |
| Paint booth | 2 × 2 × 2 m | 1 |
Snapshot from our factory equipment ledger, October 2025.
Standard Tolerances
| Process | Standard | Tight | Notes |
|---|---|---|---|
| Laser Cutting | ±0.1 mm | ±0.05 mm | On flat sheet, no forming |
| CNC Bending | ±0.3 mm | ±0.1 mm | Depends on material springback |
| Welding (structural) | ±0.5 mm | ±0.3 mm | Post-weld distortion may apply |
| Hole position | ±0.15 mm | ±0.05 mm | Laser-cut reference datum |
| Flatness | ±0.5 mm/m | ±0.3 mm/m | On untreated sheet |
| Powder coat thickness | 60–100 µm | 60–80 µm | Per RAL spec |
Tighter tolerances available on request — discuss at RFQ stage.
Upload your drawing and receive a full DFM quote in 2 business days.
